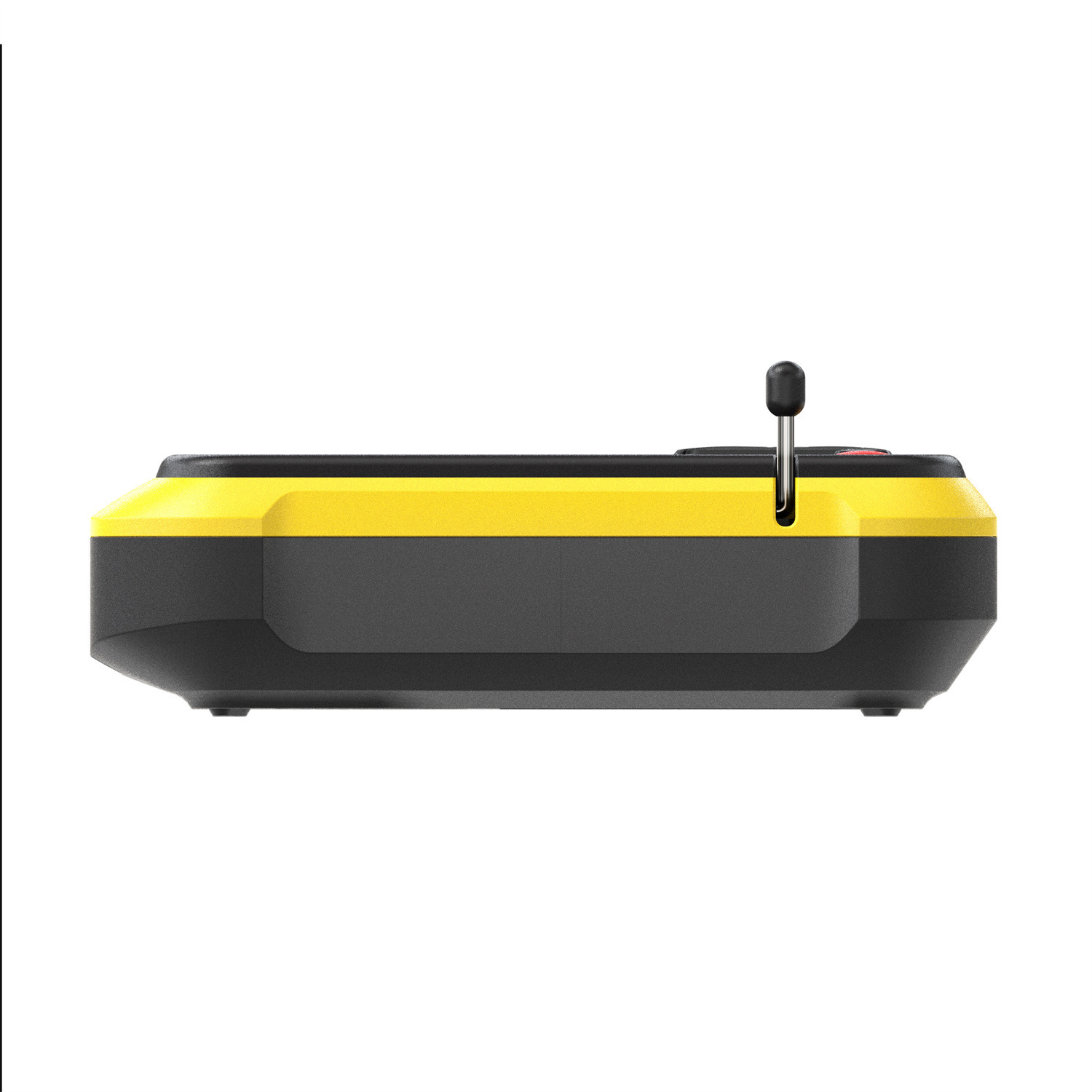

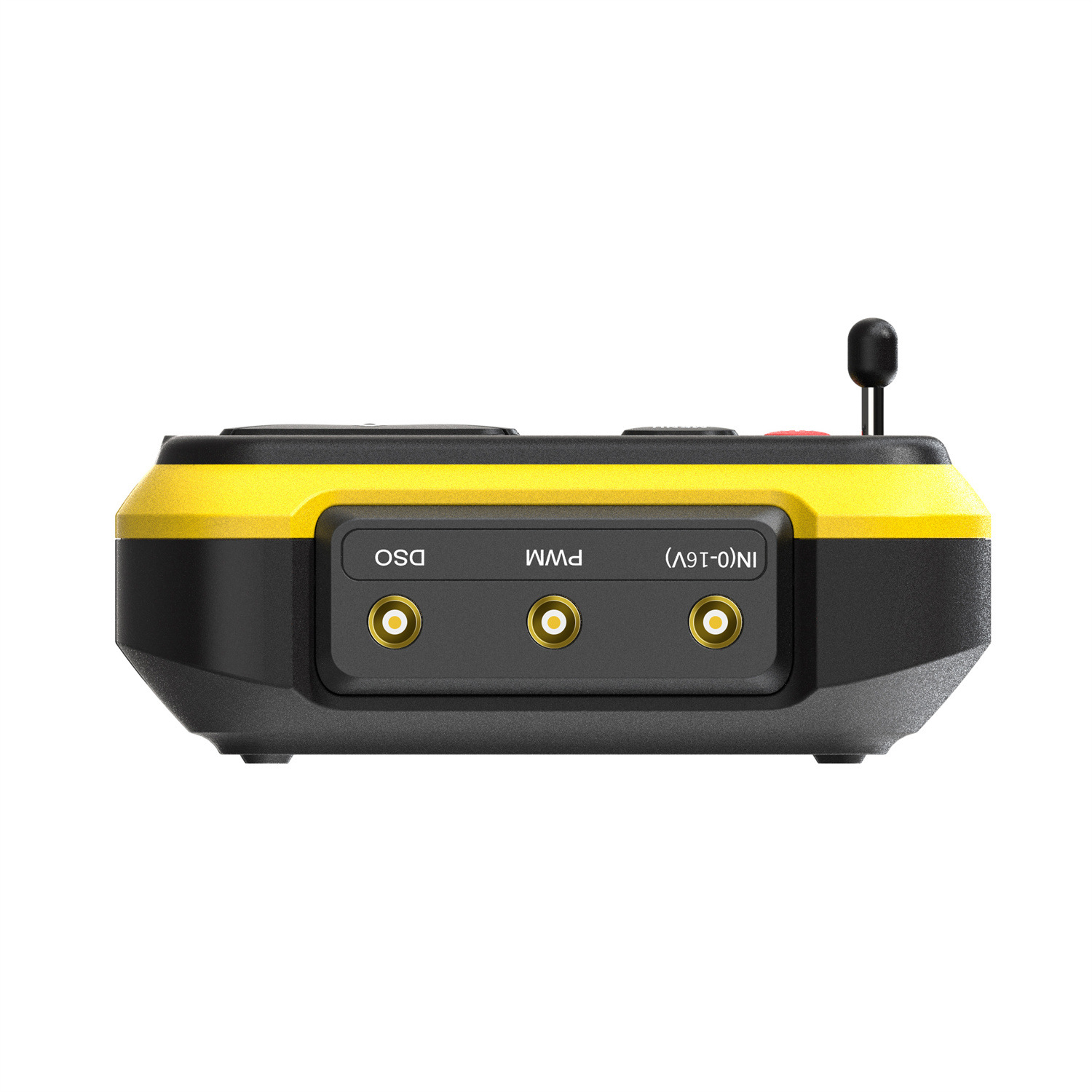

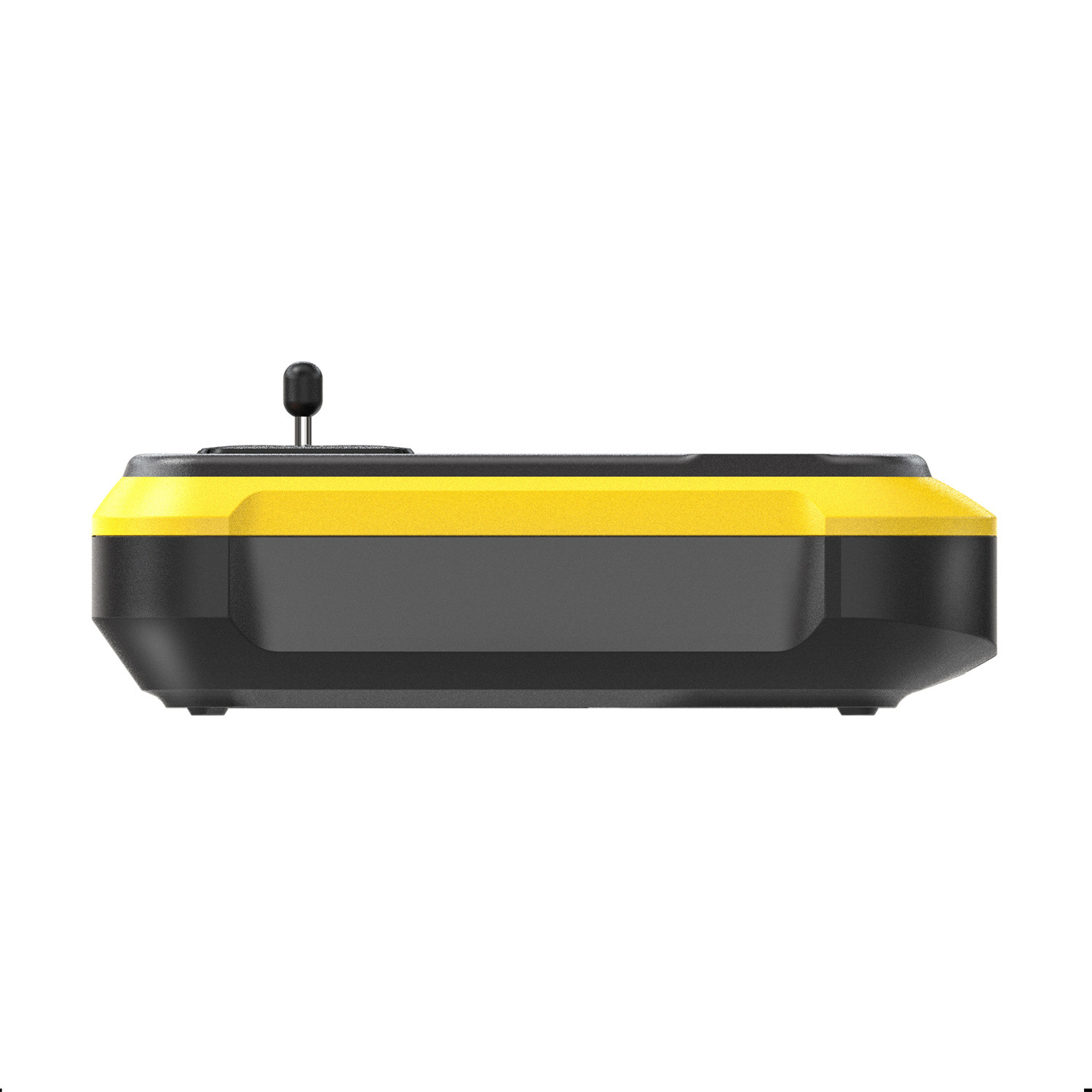

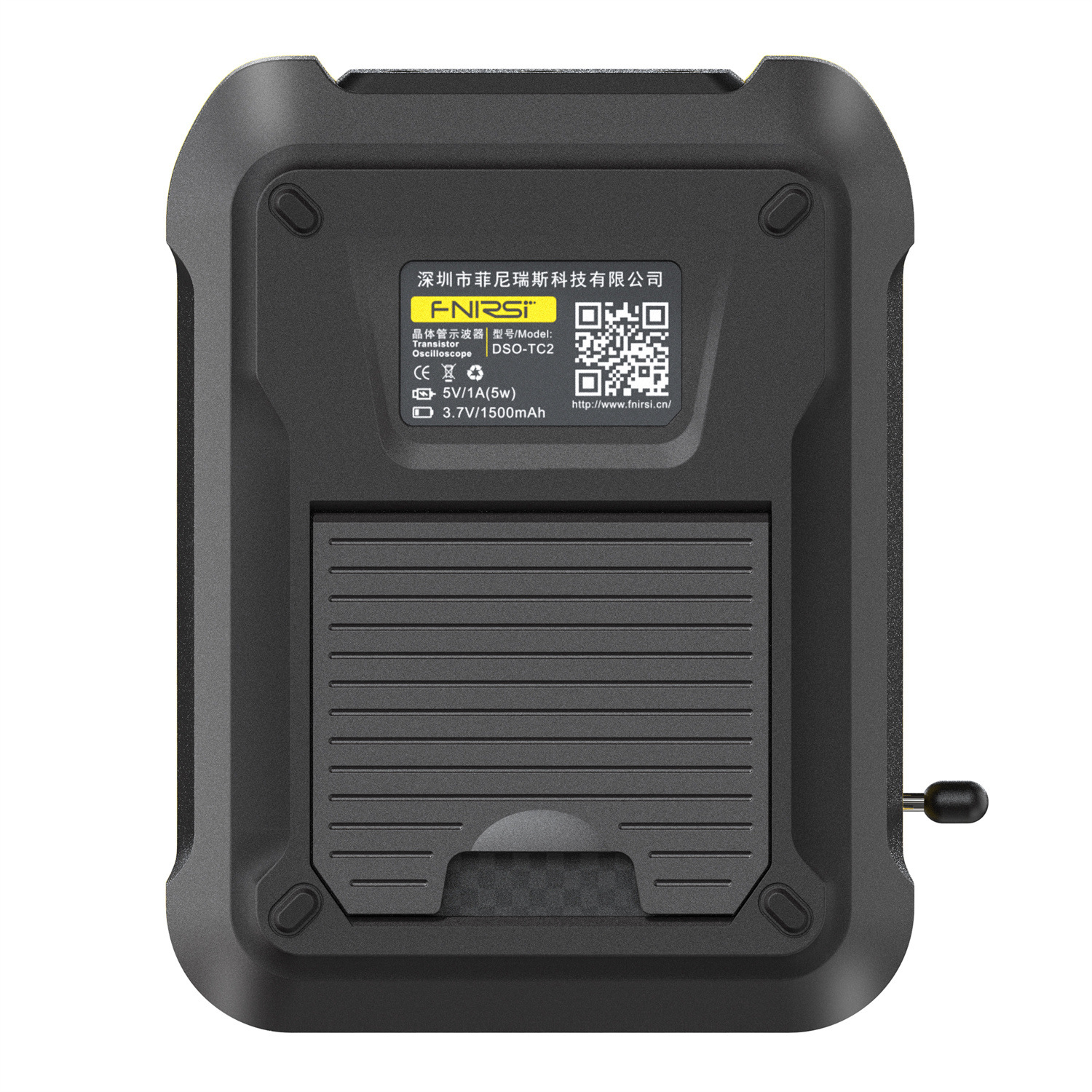

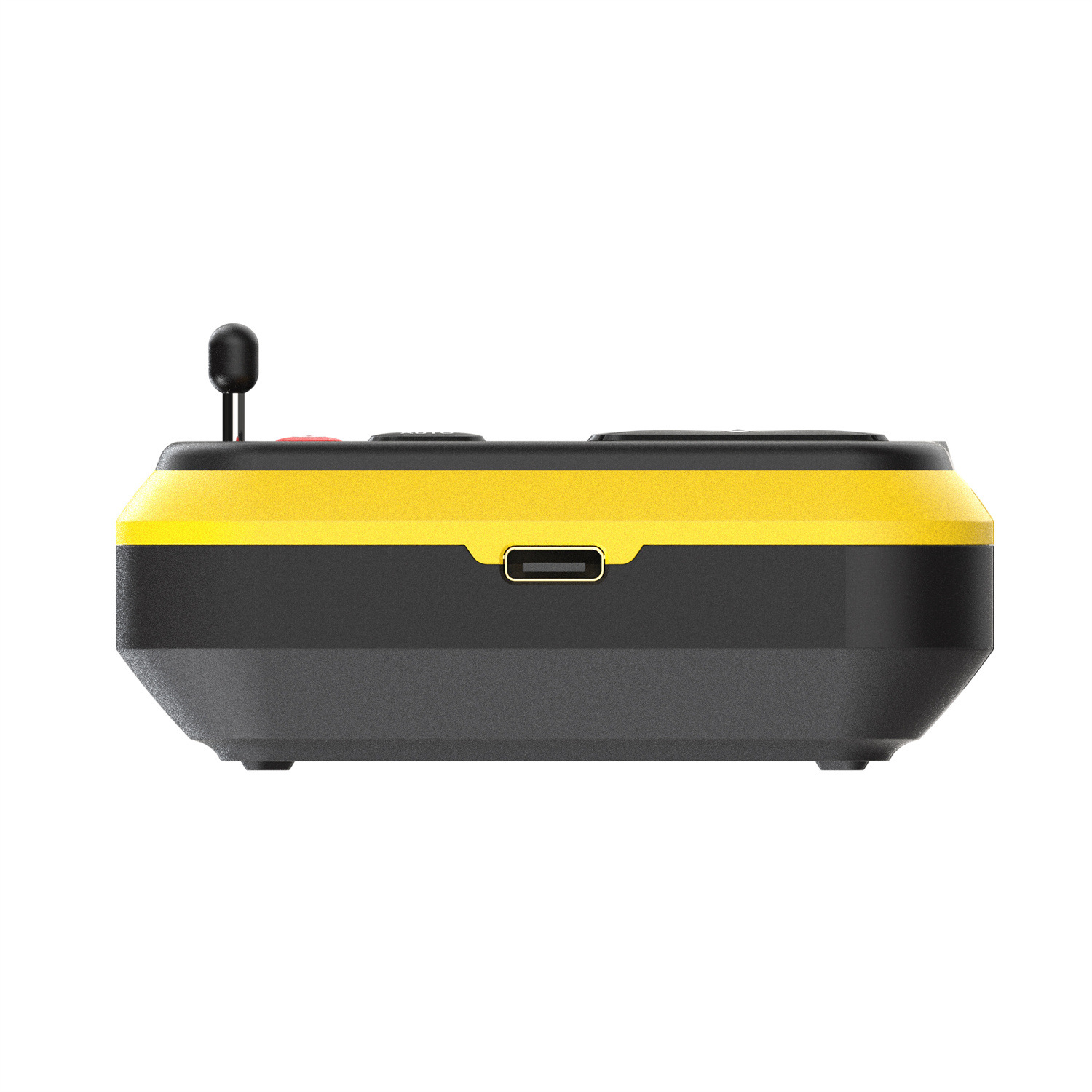

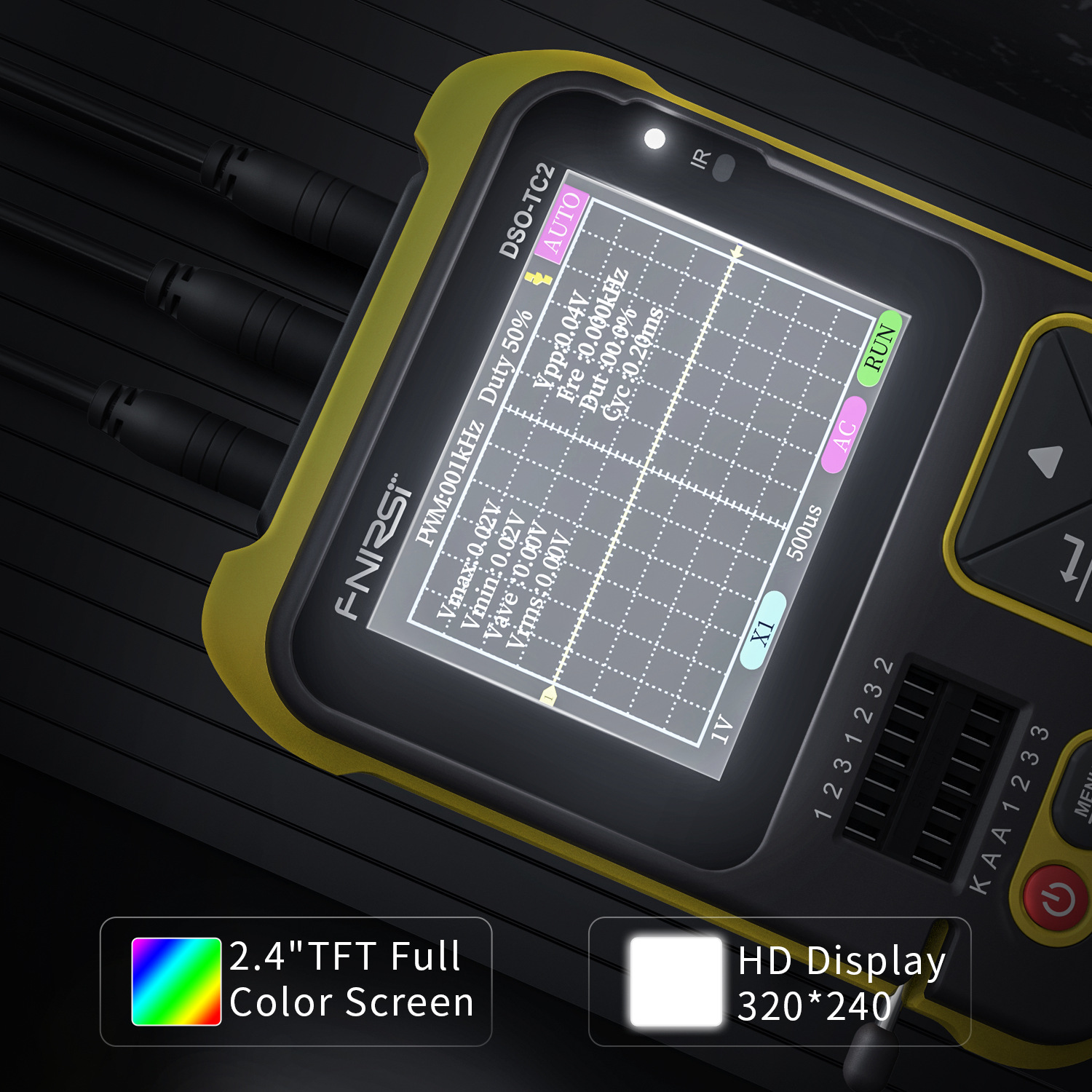

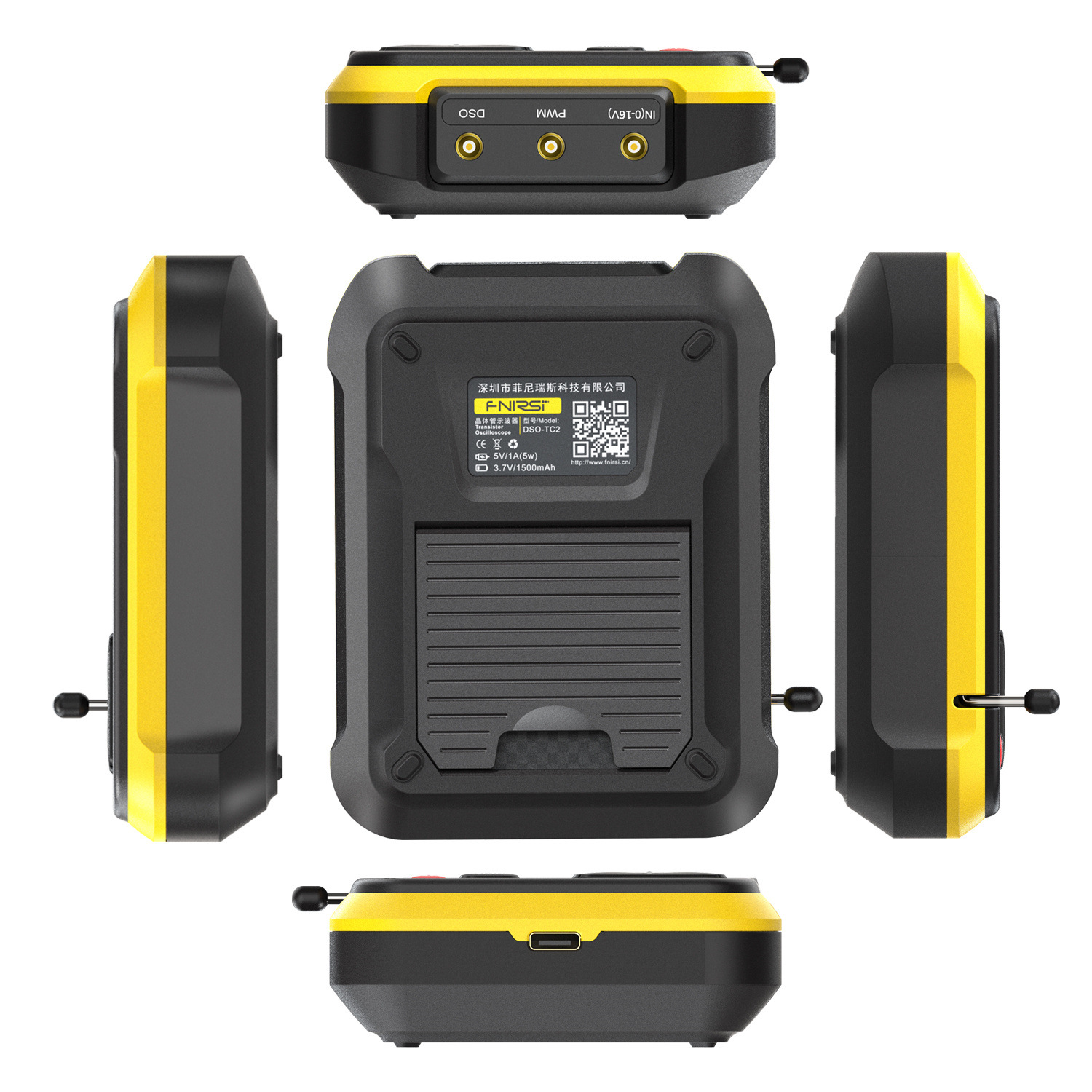

Handheld Digital Oscilloscope Portable Electronic Transistor Tester
Product information:
Case material: ABS
Bandwidth: 0.2 (MHz)
Sampling rate: 2.5 (GS/s)
Dimensions: 103x79x31 (mm)
Specification: Standard TC2, high TC2
Analog bandwidth: 0~200kHz
Input impedance: 1MQ
Coupling mode: AC/DC
Test voltage range: 1:1 Probe: 80Vpp (+40V)
Vertical displacement: adjustable with indication
Horizontal time base range: 10us/DV~500s/Div (progressive by 1-2-5)
Trigger mode: Auto, Normal and Single (Auto/Normal/Single)
Trigger type: rising edge, falling edge
Trigger level: adjustable with indication
Waveform freezing: Yes (HOLD function)
Automatic measurement: maximum value, minimum value, average value, effective value, peak to peak value, frequency, cycle, duty cycle
Features:
Automatic identification and measurement of various transistors, including NPN and PNP transistors, N channel and P channel field effectors, junction field effectors, diodes, double diodes, SCR, and resistance, inductance, capacitance and other passive components
Packing list:
DSO-TC2 tester *1pc,P6100 high voltage probe *1pc, test hook *3pcs, adapter *1pc, packaging box *1pc, ordinary probe *1pc,Type-c charging line *1pc, instruction manual *1pc
